By default, the minimum brightness of the Pen Display 16 will be around 200 cd/m2. You can adjust this to 70 cd/m2 and up to 300 cd/m2 using the Settings panel, and you can adjust the brightness to meet your needs within your environment.
With the single cable connection, the maximum brightness will be about 170 cd/m2.

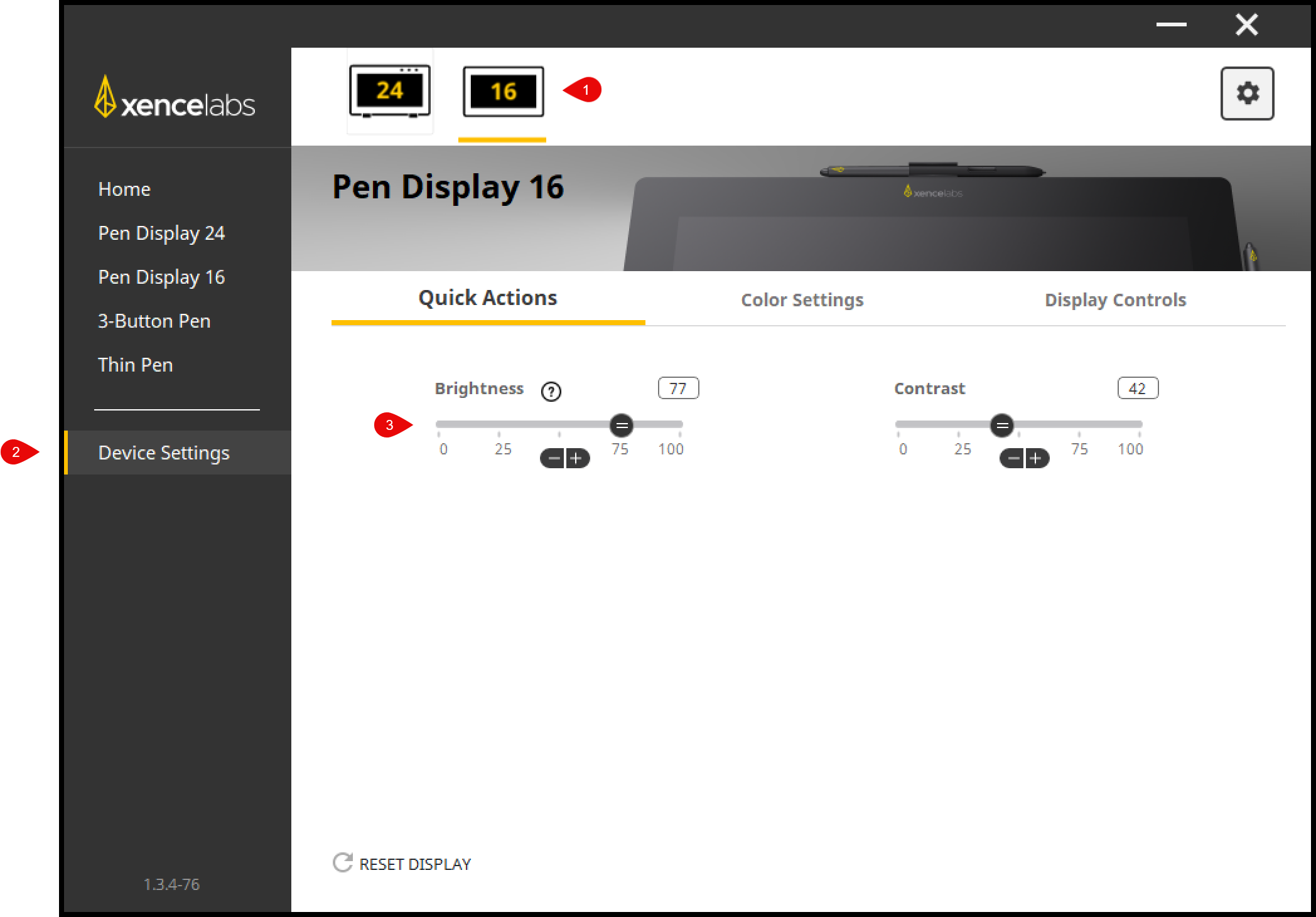

With the Settings panel open - [1] Select the Pen Display 16. [2] Then select Device Settings. [3] Using the slider, you can adjust the Pen display brightness to your desired level in the 70 cd/m2 to 300 cd/m2 range. To achieve the higher range of 200 cd/m2 to 300 cd/m2, you will need to be using the Xencelabs Hub. |  |
If you have any other questions or would like to reach out to Xencelabs Customer Care, you can email them at [email protected].
